Description
Wiegand Card Readers
125kHz EM or 13.56MHz Mifare card reader
Wiegand interface

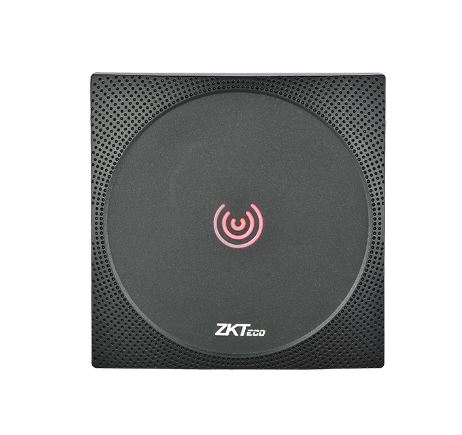

Wiegand RFID Card Readers
| Read Range | KRxxx-E: Up to 10CM, KRxxx-M: Up to 5CM |
| Reading Time | ≤300ms |
| Input Port | External LED Control , External Buzzer Control |
| Output Port | KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default) |
| Power/Current | DC 6-14V / Max.70mA |
| LED | Red and Green LEDs |
| Operating Temperature | -10°C to +65°C |
| Material | ABS+PC with texture |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Beeper | Yes |
| Index of Protection | • KR600-E/M: IP65 • KR601-E/M: IP65 • KR602-E/M: IP64 |
