FeaturesLC-750LC-750 SLC-750 T Single switch box recess mount1 minute fixed delay time Built-in CdS photocell sensor Programmable TIME & LUX Temperature compensation Full time control (no CdS)Programmable TIME & LUX Two-way control (resistive load only)Super wide angle detection N.A.
N.A.
N.A.
Superior RFI/EMI immunity N.A.
N.A.
N.A.
Specifications
Power supply230 VAC Maximum load1.5ADelay timeLC-750:1 min., LC-750S/T: 8 sec.~6 min. Infrared sensor Dual element Detectable speed0.15~3 m/sec. Mounting height1.2~1.5 m Mounting pitch60.0 mmTemperature-20C~50C (-4F~122F)Dimensions80 x 80 x 50 mm.

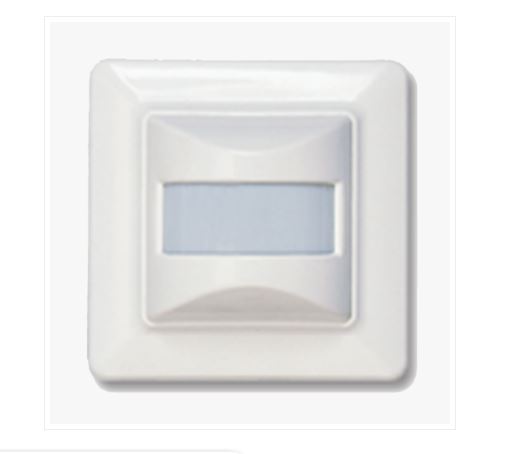

LC-750 series is a state-of-the-art energy saving auto-switch with 3 different types of control function for different application. This light control sensor switch can be mounted with the single switch box of 60.0 mm screw pitch. By utilizing IR-TEC’s patented power supply technology, Solo series is able to activate various kinds of light with only 2-wire connection, exactly same as traditional wall switch.
